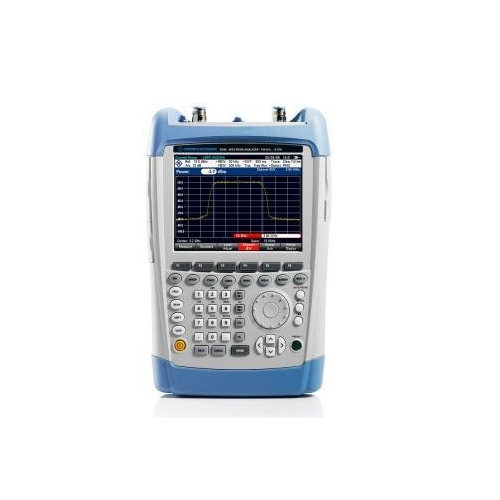

R&S FSH8/Handheld Spectrum Analyzer
FSH8 Handheld Spectrum Analyzer
main feature
Frequency range: 9 kHz to 8 GHz
High sensitivity (<–141dBm; when the preamplifier is turned on, <–161 dBm)
Low measurement uncertainty (typical value 0.5 dB)
The resolution bandwidth is as low as 1 Hz, and the signal details are clearly displayed
Up to 20 MHz signal demodulation bandwidth to meet future test needs
Built-in tracking signal source and VSWR bridge, with DC bias power supply
The whole system is equipped with THD/OBW/ACLR/SEM/channel power/gated trigger scan and other measurement functions as standard
Optional full-function dual-port network analysis, cable break point analysis and vector voltmeter
Optional spectrogram function to capture and record occasional signals
Optional WCDMA/CDMA2000/EVDO/LTE-FDD/LTE-TDD demodulation test
Optional rich antenna probes and other accessories to easily complete various RF measurement tasks
Rugged waterproof housing, suitable for harsh working conditions on site
Light weight (3 kg with battery), easy to hold, Chinese interface and function keys are at your fingertips
Support GPS positioning function
Easy-to-replace high-capacity lithium-ion battery, working time up to 4.5 hours
LAN port and USB port for remote control and measurement data transmission, measurement results can be saved in SD card
Free firmware upgrades for life
